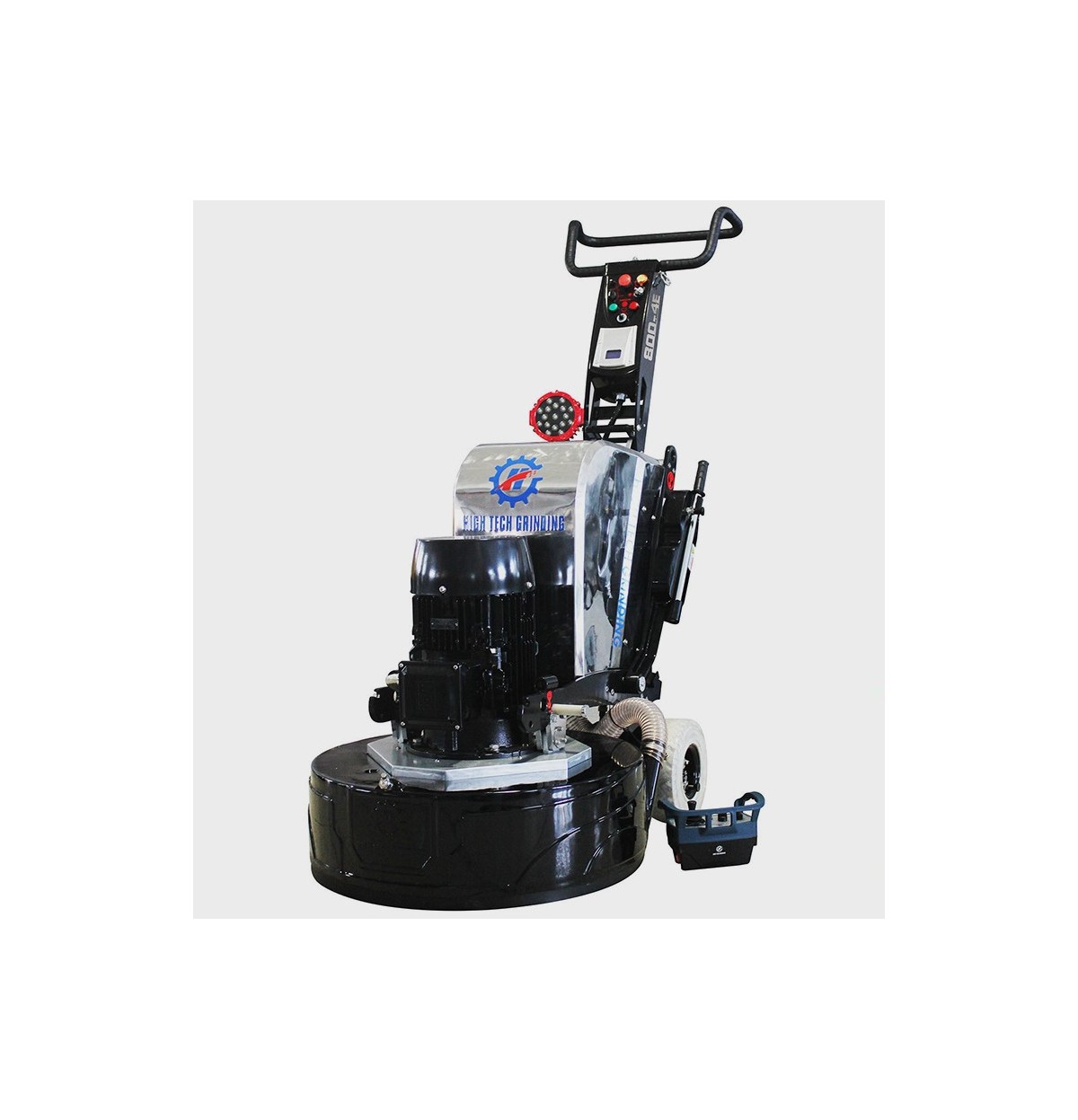

HTG 800-4E Fully Automatic Professional Concrete Polishing Machine
HTG 800-4E Fully Automatic Professional Concrete Polishing Machine
High Tech Grinding's HTG-8004E machine; It is a remote-controlled, 4-head, concrete grinding and polishing machine with a working width of 800mm. This 6th generation machine is being developed day by day.
Weighing 555kg, the machine has enormous head pressure and counter-rotating heads that allow easy control of the machine and stable application.
Remote control; This means that the operator is not straining his body by pushing the machines against the floor and can focus on related tasks such as managing the cable and vacuum hose, controlling the vacuum function and checking the floor. It provides easy control of the machine with walking speed adjustment, head speed adjustment, direction bar control and emergency stop button. After the machine is adjusted in a certain direction, it continues to advance in this way until the user stops the machine. The controls do not need to be constantly held in position. With the remote control, you can control the machine from the front of the machine, if you encounter any obstacle, you can stop the machine or change direction by intervening.
OTHER FEATURES:
It has gear-operated heads with more efficient wiping power, which do not need more belts for movement and stopping.

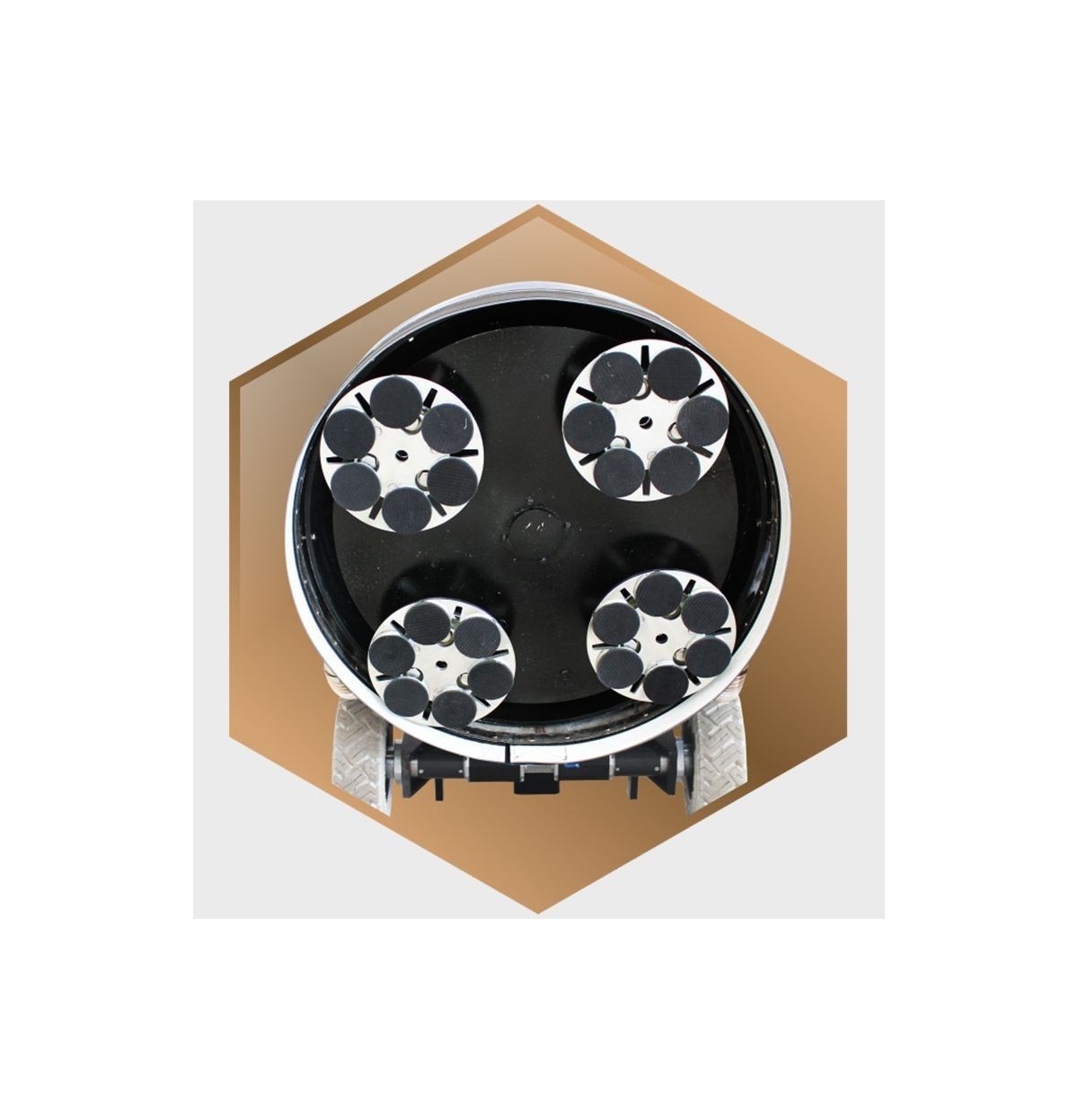

It consists of 4 heads with counter-rotation power for a better wiping and balanced control.
It has heads with a rotation speed of 450-1950RMP and a main disc with a rotation speed of 300RMP.
-There is also a 3″ dust inlet unit compatible with the IVC-55L vacuum machine and a 10m hose.
(In this respect, this system has great efficiency and dust control.)
-The easily adjustable arm system is lowered towards the back of the machine, making the related unit more organized.
- It has 2x 20 KG swing weights which are used to adjust the head pressure and make it easy to tilt the machine when in the rear position.
-Front mounted transport wheel; It is used to lift the front of the machine to allow the machine to be easily transferred to and from the construction site.
In cases where there is a power cut and the battery cannot be charged, the drive wheels allow manual control or movement of the machine.
- Built-in battery - allows the machine to operate with the remote control when not connected to the mains.
It has a 18.5KW Delta branded inverter that is supported worldwide.
- It has an internationally valid 15KW engine.

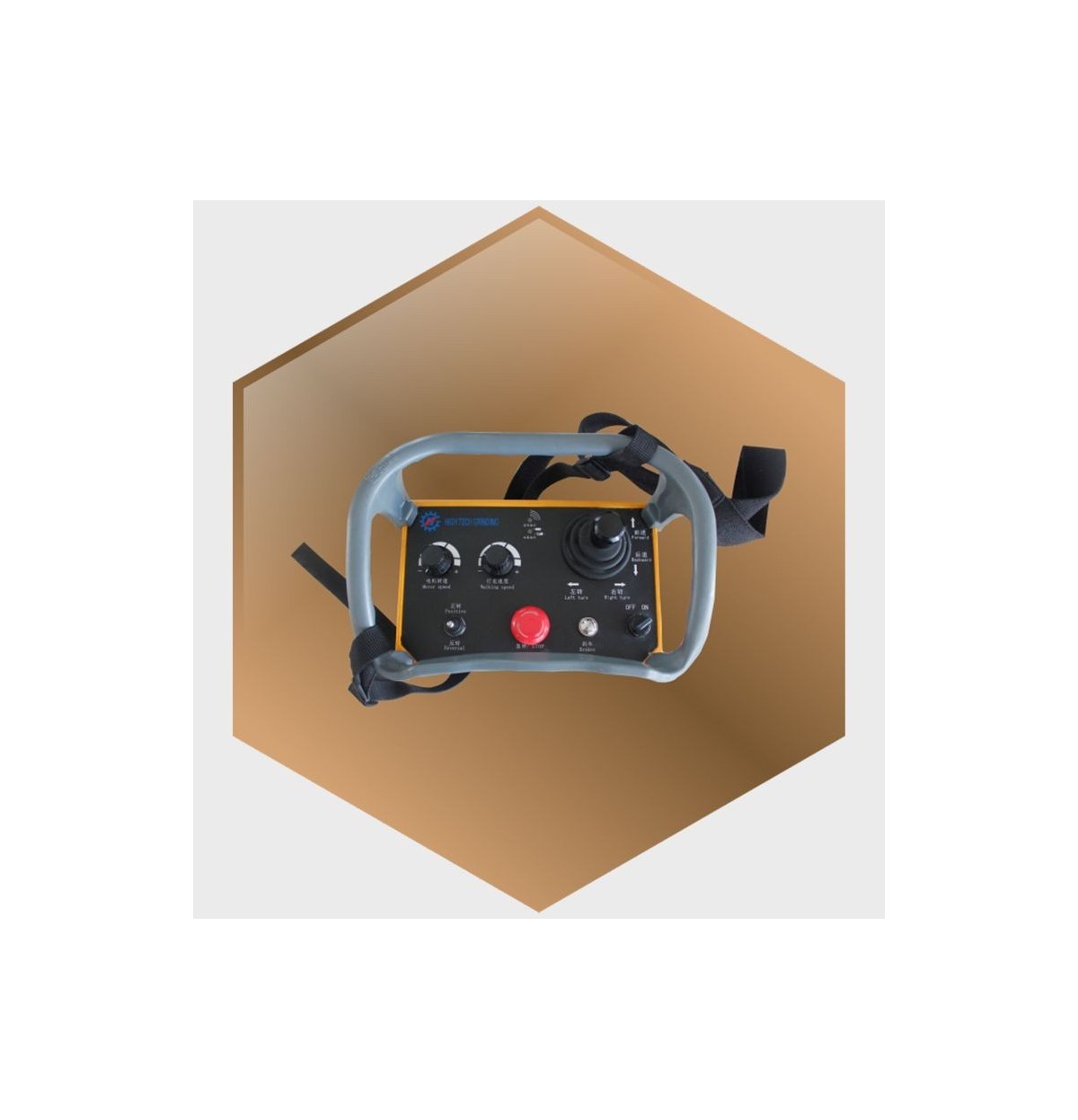

-Remote control; It consists of a spare battery and a charger in a tight case.
- 1 year of motor and inverter; Gear parts also have a 2-year warranty period.
We also have a more affordable self-propelled semi-automatic machine with a motor that allows the wheels to move, and a back and forth buttons. This is undoubtedly much easier than pushing, loading and unloading a 500kg machine all day long.
