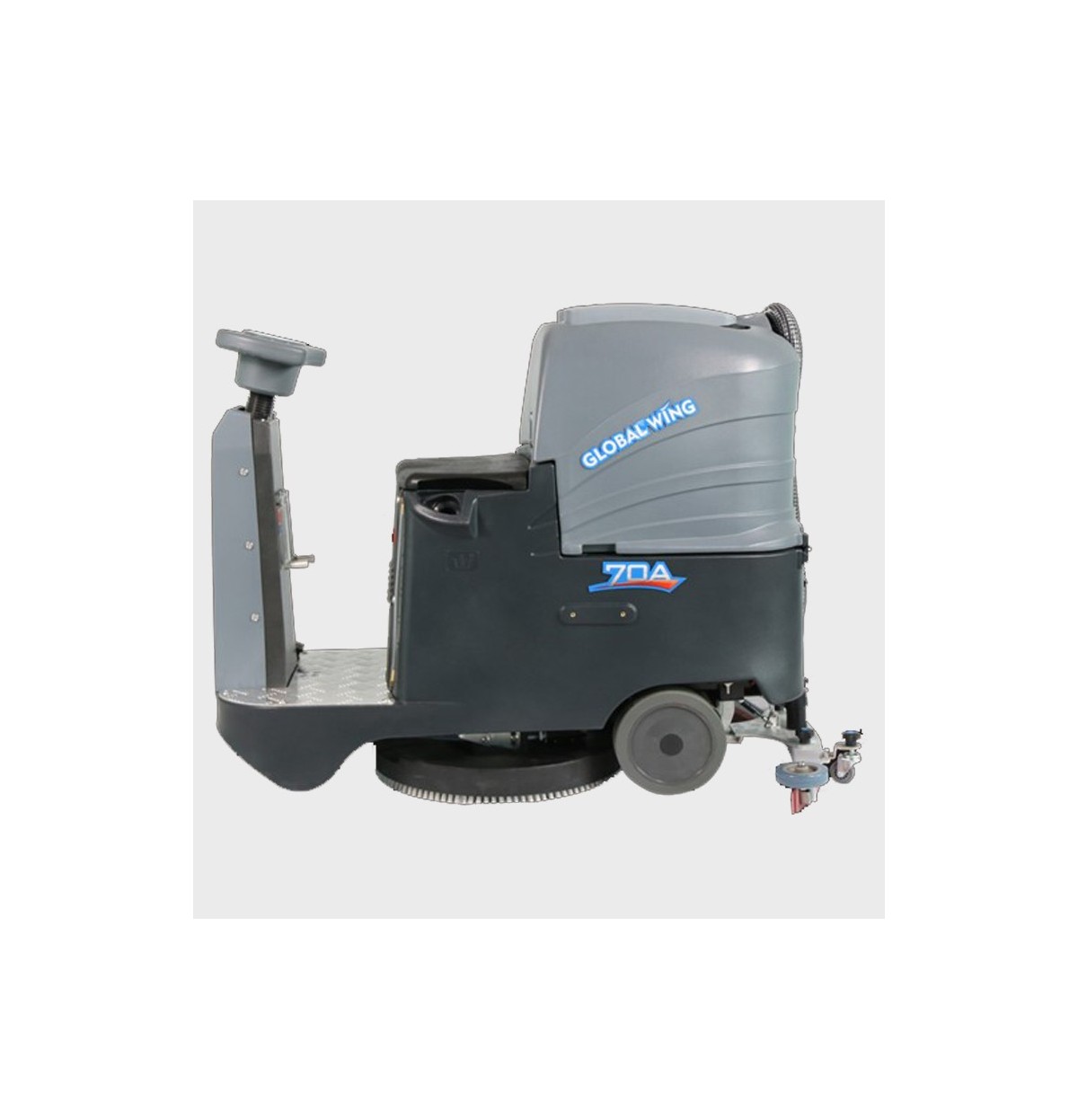

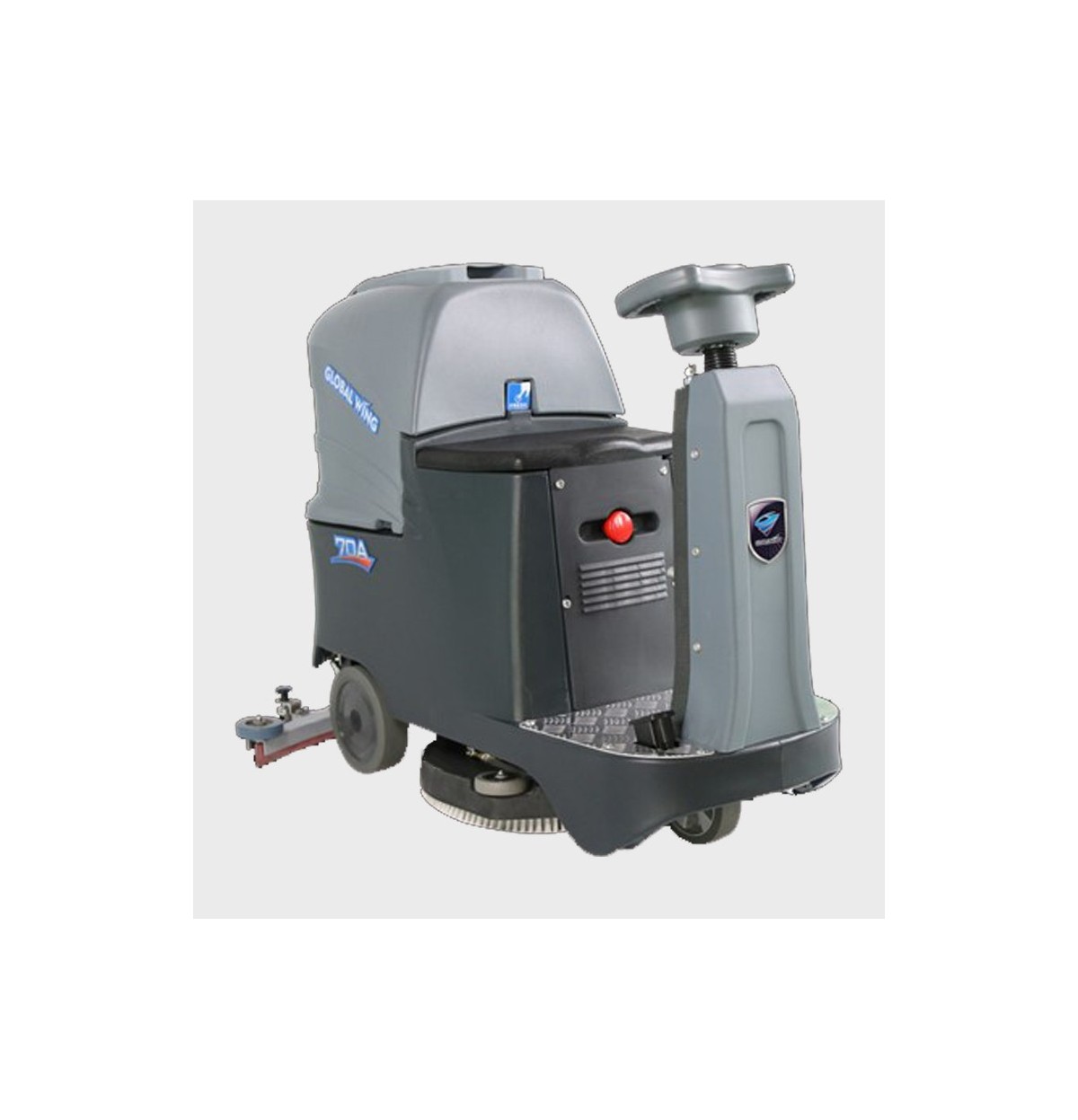

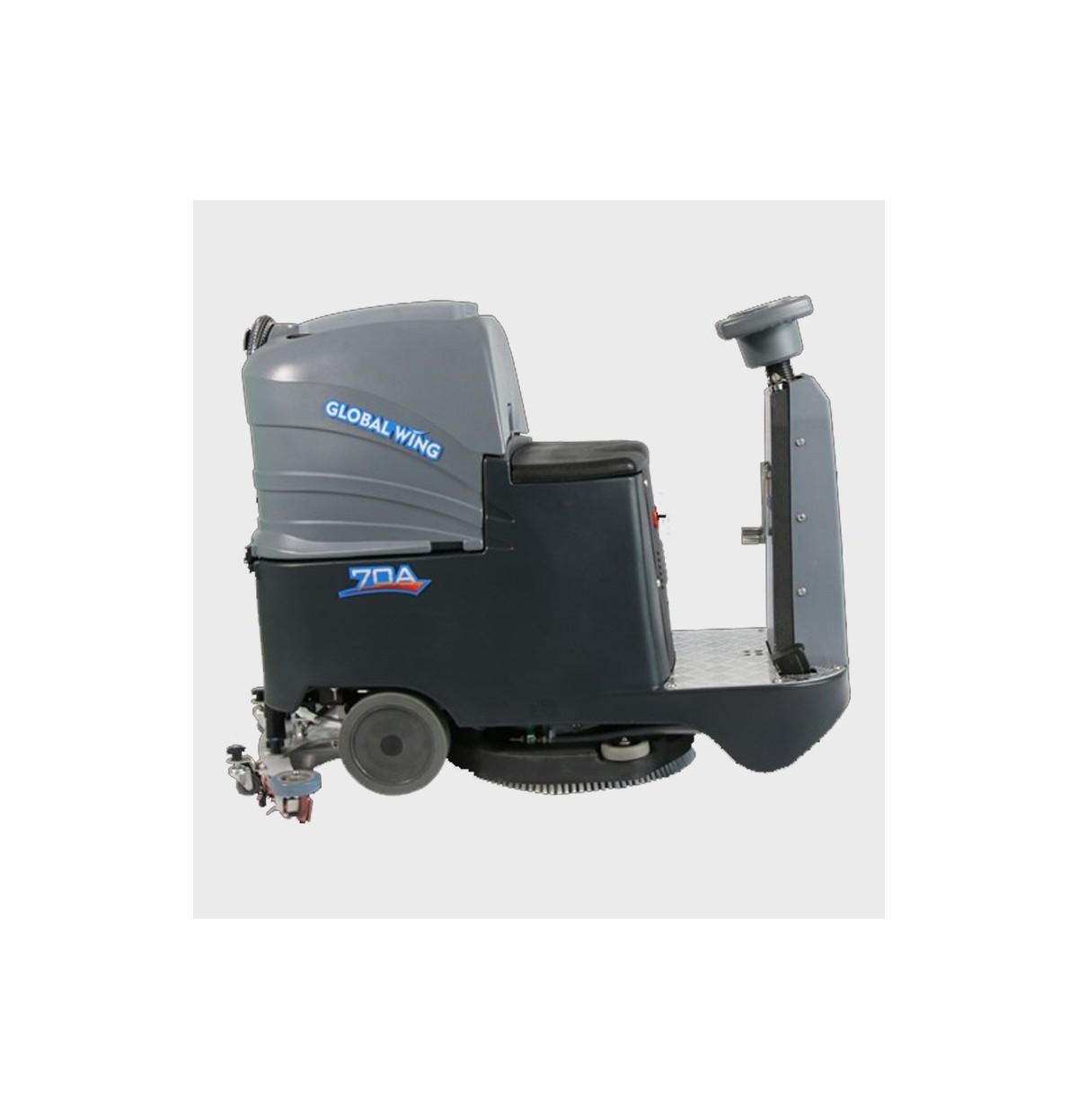

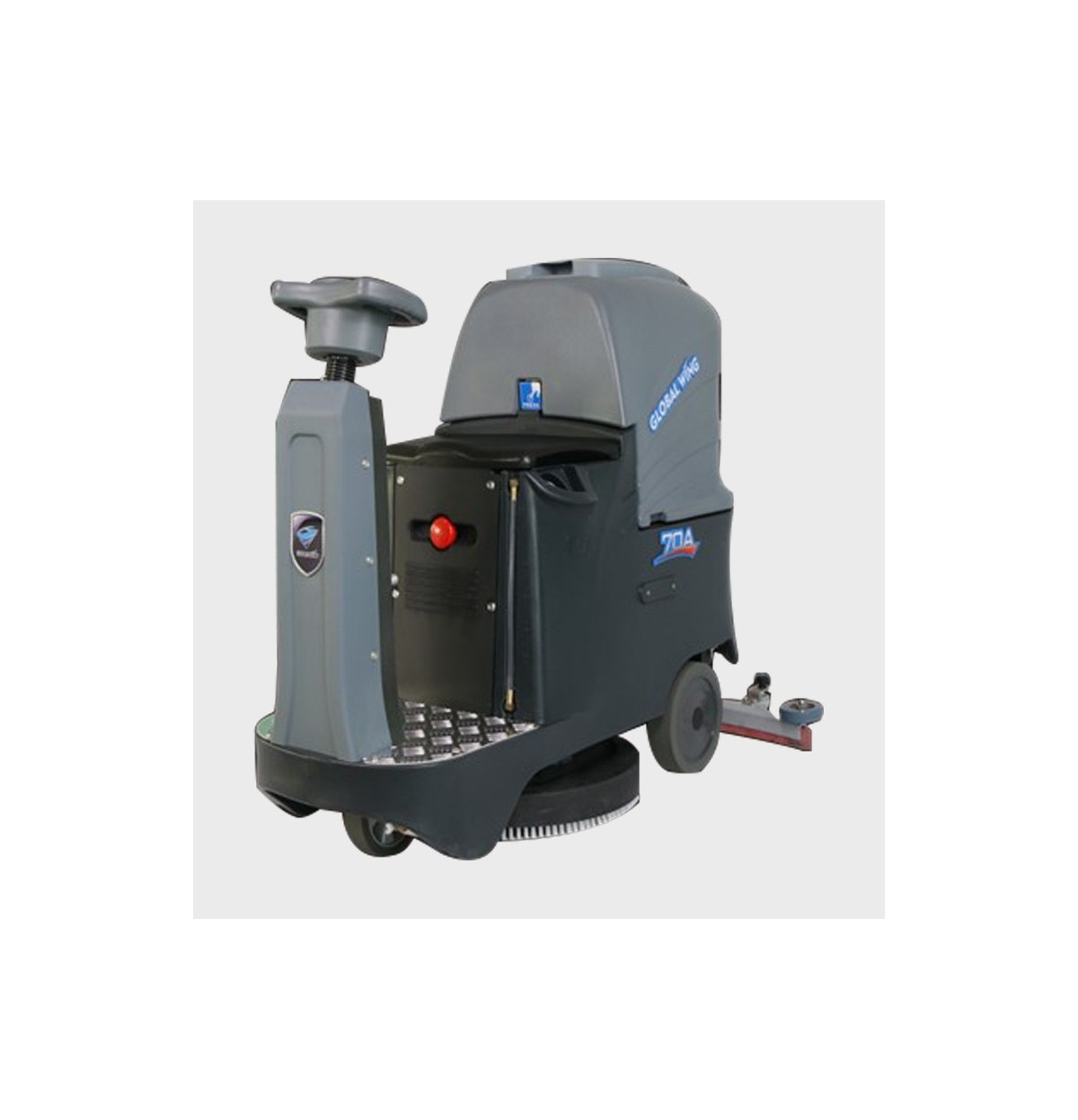

HTG 70A Automatic Floor Cleaning Machine With Driving Seat

70A AUTOMATIC FLOOR CLEANING MACHINE WITH DRIVING SEAT

FEATURES & ADVANTAGES

- Regardless of the size of the area to be used, the machine; It is extremely suitable for use in workplaces, garages, airports, shopping malls, stadiums.

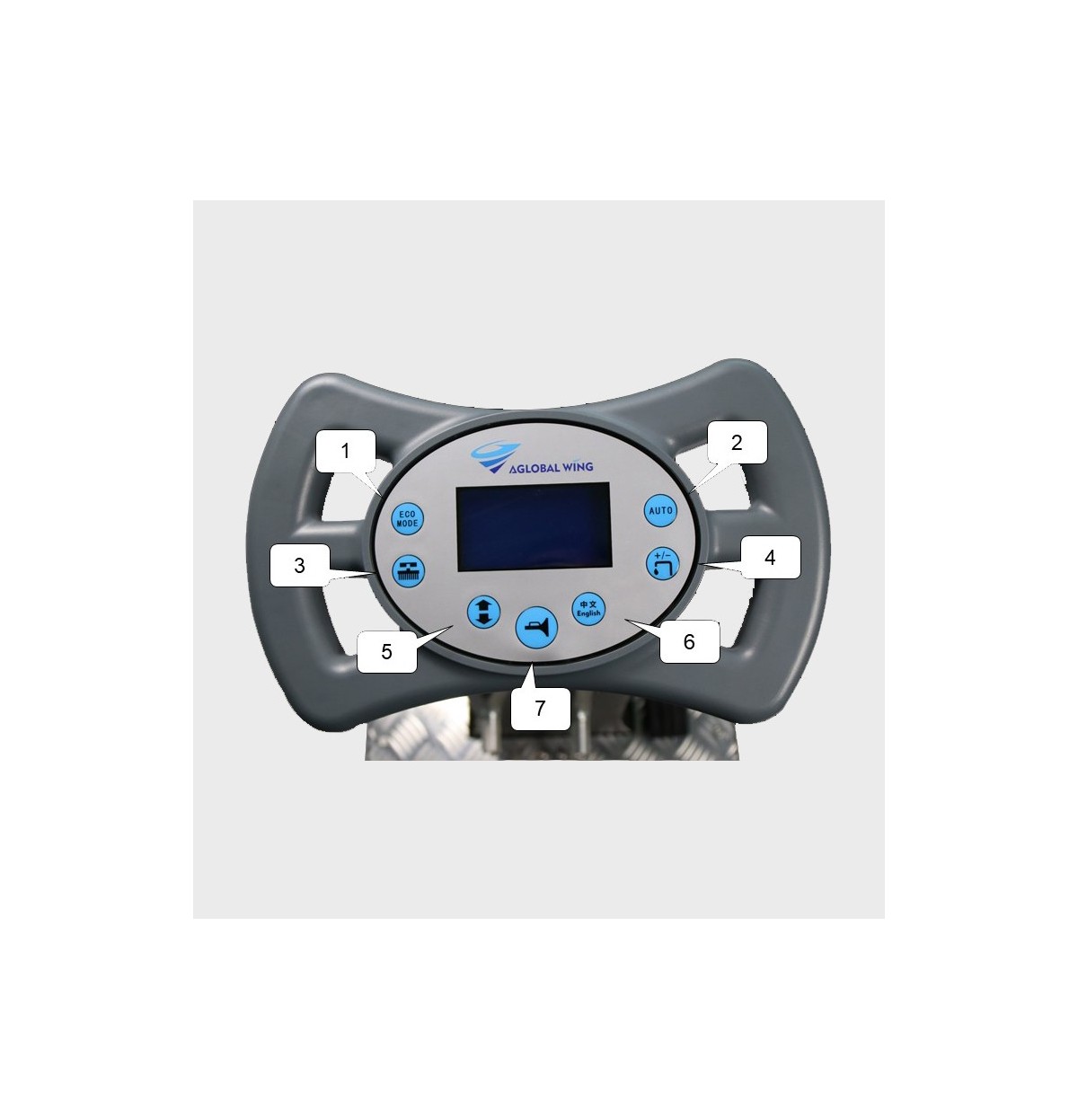

- Works perfectly on PVC, marble, granite, epoxy, concrete etc. surfaces. The buttons and functions available on the steering wheel in the front are as follows:

1- In ECO Mode-Energy saving mode, the brush motor power is reduced by around 50% to turn on the suction motor. This ratio is quite suitable for a clean surface, and the water level should not be too high and this ratio should generally be 1 or 2.

2-  AUTO-In normal conditions and when the machine is turned on, it automatically shows the mode in which the machine works. On the other hand, the manual mode can be used in local dirt on the floors without pressing the gas control. Thus, the machine will easily erase the desired area.

3- Brush Button-When this adjustment button is pressed, the control panel will automatically adjust the brush up or down according to the condition of the surface. For the upper brush, the brush plate is placed under the brush motor. The brush plate mechanism is lowered, if the brush button is pressed in order to enter the upper brush mode, the screen displays the text "Brush Plate Attachment". For the lower brush; the brush mechanism is stopped and the brush button is pressed to switch to the brush mode. The text 'Remove Brush' appears on the screen.

4- Water Level Adjustment Button

5- Front-Back Movement Button-This is the button that allows the machine to move forward or backward.

6- Chinese / English Language Button

7- Horn Button

ERROR SCREEN AND SOLUTIONS

- If the battery is under voltage, it should be charged immediately.

- In case of excessive motor current, the transmission mechanism and road condition should be checked.

- If the brush motor current is high, the brush mechanism and road condition should be reviewed.

- An excess of suction motor current means it is damaged and the motor must be replaced.

- If the dirt tank is full, the cleaning function must be turned off and the waste water must be drained immediately.

PREPARATIONS BEFORE IMPLEMENTATION

- Your screen is normal; Check if the battery is fully charged.

- While adding water, the waste water tank should be purified from waste water and the amount of water to be added should not exceed the tank capacity.

- It should be checked whether the dirty water tank is tight.

- It should be checked whether the waste water pipe is tight.
